One-sided overflow 8×3,5

One-sided overflow pool
One-sided overflow pool 8x3,5m is an atypical pool that impresses with its practicality and simplicity. The water level is higher than that of skimmer pools. This variant is a suitable compromise between skimmer and overflow pools, combining the advantages of both types of pools.

Technical information

  • Basic shape: square
  • Internal pool dimensions: 800 cm x 325 cm
  • Outer pool dimension: 850 cm x 360 cm
  • Sheath thickness in basic version: 8 mm
  • Reinforcement thickness: 8 mm and 10 mm

One-sided overflow pool schéma


Price of the pool bath in different designs

Type Depth
120 - 150 cm
Without staircase Without staircase 4 791 €
With internal corner straight/circular staircase With internal corner straight/circular staircase 5 239 €
With royal staircase With royal staircase 5 440 €
With Roman staircase With Roman staircase 5 485 €

Components in the basic price

Complete filtration Complete filtration 12m3 + 100 kg of sand 686 €
Wall insulation with hardened polystyrene Wall insulation with hardened polystyrene 30 mm
(installed on the pool walls)
314 €

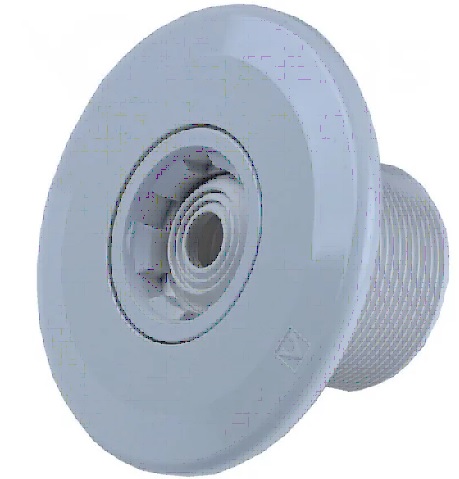

Cirkulační tryska Circulation jets 3 pcs 41 €
Slat reinforcement Slat reinforcement
(necessary for crane and concreting)
126 €
Fasteners and installation Fasteners and installation
(PVC material and pool commissioning (pipe installation) training with technology)
448 €
Plastic box 350 cm x 180 cm x 120 - 150 cm (l x w x h)
(plastic box with retention vessel in one)
851 €
Roxory reinforcement Roxory reinforcement
(necessary to connect the pool with the concrete in one unit)
126 €
Shipping Shipping 0,54-0,72 €/km

Additional components and surcharges

Extra charge for bottom reinforcement to 6 mm 269 €

Pool lighting

Led white SeaMaid light Led white SeaMaid light
(seamaid type is a type of light we have tested and recommend because of its cable penetration)
224 €
Led light coloured SeaMaid
(remote control)
269 €

Water maintenance equipment

Uv lamp 75W Uv lamp 75W 381 €
Salt water - Minisalt 30 Salt water - Minisalt 50
(replaces chlorine worries)
1 039 €
pH Automat pH Automat
(automatic pH maintenance including pH minus barrel)
560 €
Automatic pH and Cl adjustment (saline version) Automatic pH and Cl adjustment (saline version)
(An instrument that automatically checks the pH and Cl. It switches the salinator on and off according to the chlorine gas value in the water and automatically maintains the pH.)
2 284 €
Automatic pH and CL maintenance (chlorine version) - VaDos Automatic pH and CL maintenance (chlorine version) - VaDos
(A device that automatically maintains the pH and chlorine value in the pool. A pH barrel and a chlorine barrel are also included.)
1 165 €

Water heating

Heat pump XHP FD PLUS 140 (12 kW) Heat pump XHP FD PLUS 140 (12 kW)
(suitable heat pump for this size)
1 523 €
Heat pump XHPFDPLUS 160E – inventor Heat pump XHPFDPLUS 160E - inverter
(heat pump for more demanding clients - more efficient, cheaper operation, remote control via Wi-Fi mobile phone)
2 418 €

Swimming pool vacuum cleaners

Manual vacuum cleaner 81 €
Automatic bottom vacuum cleaner – Dolphin spring Automatic bottom vacuum cleaner - Dolphin spring 784 €
Automatic bottom wall vacuum cleaner Dolphin E20 Automatic bottom wall vacuum cleaner Dolphin E20 1 111 €

Other

Countercurrent elegance 70 Countercurrent elegance 70
(output 70m3/h)
1 026 €
Flow yet 5000 countercurrent  - more powerful version  Flow yet 5000 countercurrent - more powerful version
(output 90m3/h)
1 429 €
Pool Waterfall Pool Waterfall
(not recommended for use with salt water)
717 €
Solar shower Fantasy Rain 35L Solar shower Fantasy Rain 35L 157 €

Pool roof 8x3,5m

Classic 840x360x115 Classic 980x360 4 975 €
Elegance 840x360x80 Elegance 980x360 5 311 €
Madeira 740x360x75 Madeira 980x360 8 731 €

If you are interested in a 8x3,5m pool with a one-sided overflow, please do not hesitate to contact us for help, advice and pricing.
